YONGHENG QUICK CONNECTOR

Fuel line of QC 15.82mm or SAE 5/8''
 Item number:H1

Describe:One button
Size: Ø15.82mm
Hose  fitted : ID XOD:14.00*16.00mm
Material;PA66 or PA12+30%GF

Patentability
A pipe quick connector, patent number ZL2013 2 0852714.6

Operating pressure 500kPa, 5bar, (72psig)
Operating vacuum -50kPa, -0.55bar, (-7.2psig)
Operating temperatures from -40-40°Fto 115239°F, short time 150




Product advantages

· Fast assembly without tool -> time and cost reduction

· robot assembly possible  -> automated processes

· compact building method -> employment in extremely close  installation  conditions possible

· integrated seal - > optimal tightness

Applications in the automotive industry

Can be used to make both line-to-line or line-to-equipment connections.

· Fuel feed / return lines

· tank breathing
· Ventilation lines
· Oil cooler lines

· Vacuum control lines

Catalogue

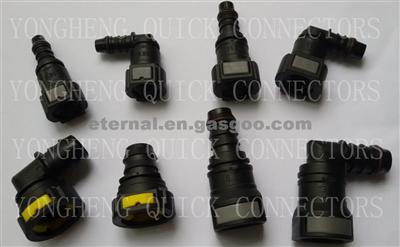

More than 100 types of connectors for you to chose

skype: Claire032766

Custom-made is available!

Need More automotive connector info ,pls direct contact us!

welcome to your communication and cooperation!
